Introduction:
It is suitable for multi-color printing of roll paper, tinted with high precision, and it’s good equipment for paper cups, paper bowls, paper plates and ect. It is widely applied in producing cigarette cases, pharmaceutical boxes, envelopes, paper cup fans, paper bowls and various paper products with high precision and stability by die cutting creasing and embossing. It could automatically complete the full process of die cutting, creasing, embssoing and stack collection.

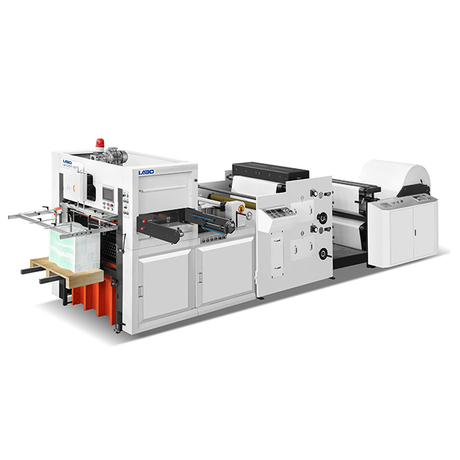

Machine Pic for Reference:
Model | 970 x 550 | 1080 x 640 | 1150 x 640 | 1250 x 640 |
Max Cutting Area | 950mm x 520mm | 1050mm x 610mm | 1120mm x 610mm | 1220mm x 610mm |
Cutting Precision | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
Paper Gram Weight | 120-400g/㎡ | 120-400g/㎡ | 120-400g/㎡ | 120-400g/㎡ |
Production capacity | 150-180 times/min | 150-180 times/min | 150-180 times/min | 150-180 times/min |
Air pressure requirement | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Air Pressure consumption | 0.25m³/min | 0.25m³/min | 0.25m³/min | 0.25m³/min |
Max cutting pressure | 150T | 150T | 150T | 150T |
Weight | 8.5T | 9T | 9.5T | 10T |
Max roller diameter | 1600mm | 1600mm | 1600mm | 1600mm |
Total power | 26KW | 26KW | 26KW | 26KW |
Dimension | 6500x2100x2000mm | 6500x2250x2000mm | 6500x2400x2200mm | 6500x2550x2200mm |
Stepper motor | Schneider (Germany) |
Pressure adjusting motor | Taiwan |
Servo driver | Schneider (Germany) |
Color Sensor | Sick(Germany) |
PLC | Schneider (Germany) |
Frequency converter | Schneider (Germany) |
Photoelectric switch | Leuze(Germany) |
Main air cylinder | AirTAC (Taiwan) |
Solenoid valve and other parts | AirTAC (Taiwan) |
Pneumatic clutch | China |
Main bearings | Germany |
