digital die cutting machine for paper factory

Introduction:

A die cutting machine for paper cup production is specifically designed to cut and shape paper materials into the desired cup shape. It is an essential piece of equipment in the paper cup manufacturing industry

Machine Detaild Pic:

Paper Roll Feeding

Punching Mould

Collection Part

Main structure

Lubri cation System:  Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.

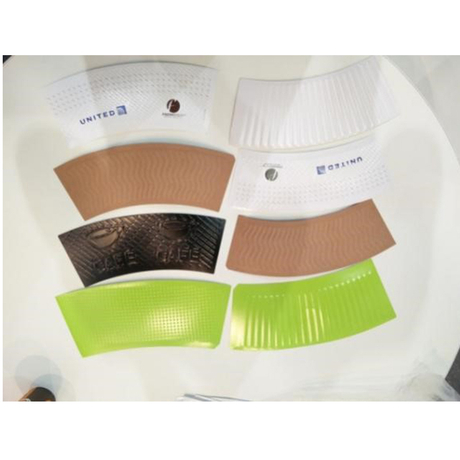

It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.

Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine.

Die cutting plate: 65Mn steel plate heating treatment, high hardness and flatness.

Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.

Paper blocked alarm: the alarm system makes the machine stop when paper feeding blocked.

14. By the action of the entity induction switch, finished product will be automatically lowered down to remain the height of the pilling paper unchanged, during the whole die-cutting process, manual paper-taking is not needed.

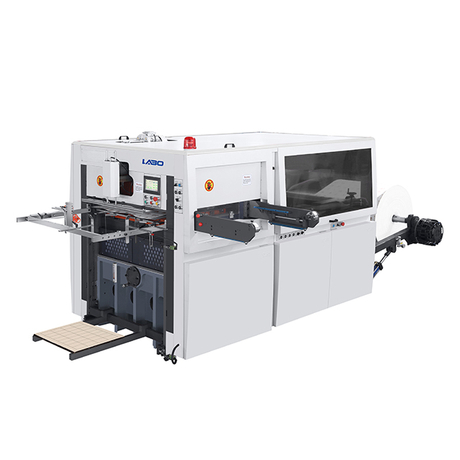

ROLL DIE CUTTING MACHINE
