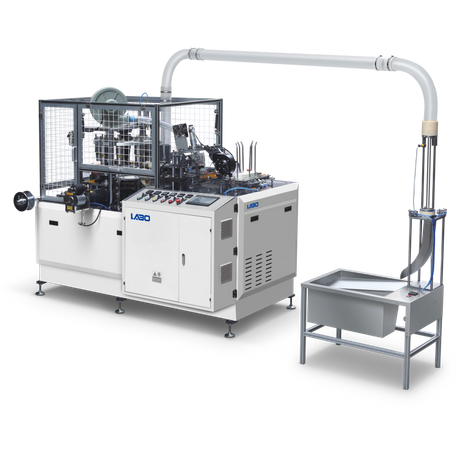

LB-OC12 Automatic Paper Cup Machine with Ultrasonic System

Introduction:

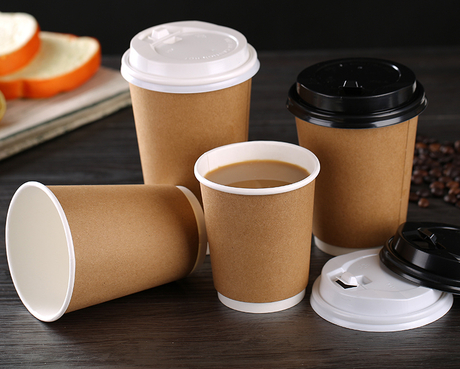

LB-OC 12 Open Cam Paper Cup Machine improved on our hot sale ZBJ-X12 model machine,With advanced design and intelligent program, more reliable and durable, competitive price.It makes both one-side or two-side PE-film-coated paper cups after running a whole procedure of automatic Multi-step pre-printed-cup-fan-paper Feeding (Multi-step paper-feed and Anti-back device to keep the accurate position), cup-body-side welding, silicone-oil lubricating(for top curling), robot transfer cup body, bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging and collecting.

                                            (T)Top: 45~90 mm

                                            (B)Bottom: 35~72 mm

                                            (H)Height: 40~136 mm

Main Improvement:

#        Speed 70~80 cup/minute

#        HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.

#        Adopt Open Cam (8-divide) for the dividing moving, compare with index gear box, easy maintenance, stable and reliable, easy replace broken parts.

#        Main mechanism and movement control by quality gears and shaft/axis, which is more efficient than chain axis.

#        Only ONE main turntable, more efficient and reliable.

#        Self lubricate (automatic oil lubricate),

#        11 sensors detect all steps, any fault auto stop,

#        Quality bearing and electronic element, long life,

#        Robot straight lift the cup body to main mold.

#        Stepper motor control the bottom feed, precision and reliable.

#        Bottom disk straight punched and send to the cup body, less wastage and precision.

#        Separately cam control the bottom movement, machine smooth and light,

#        Advanced bottom knurling system, reliable and long life,

#        Cup side sealing ultrasonic (1PE & 2PE paper),

#        Bottom hot air heating , good sealing,

#        Working power less, save cost,

#        With cup collector/stacker, One worker run 2~3 sets cup machine, save labour cost,

#        Optimize the movement design, frame, parts, machine more light pressure, long life time.
